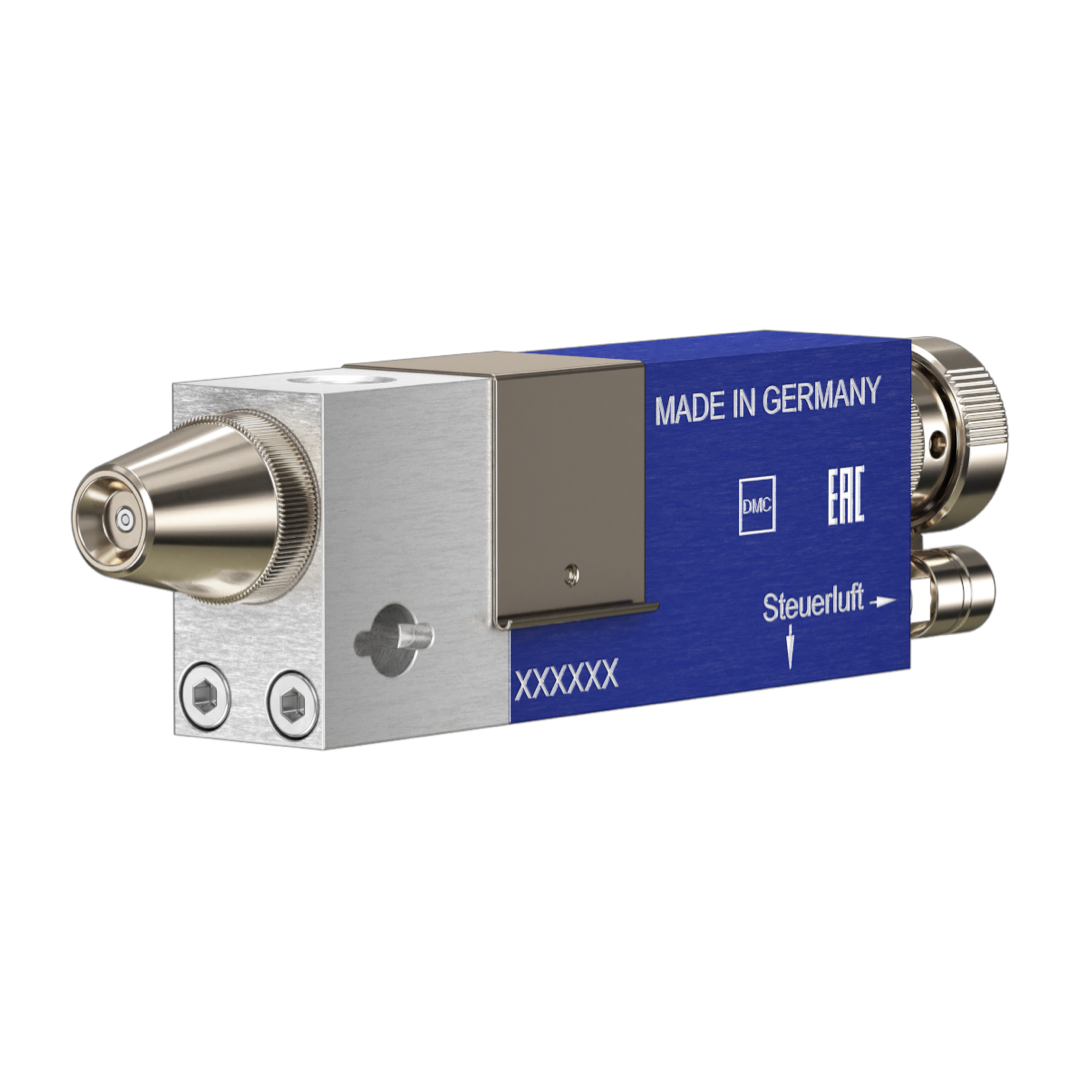

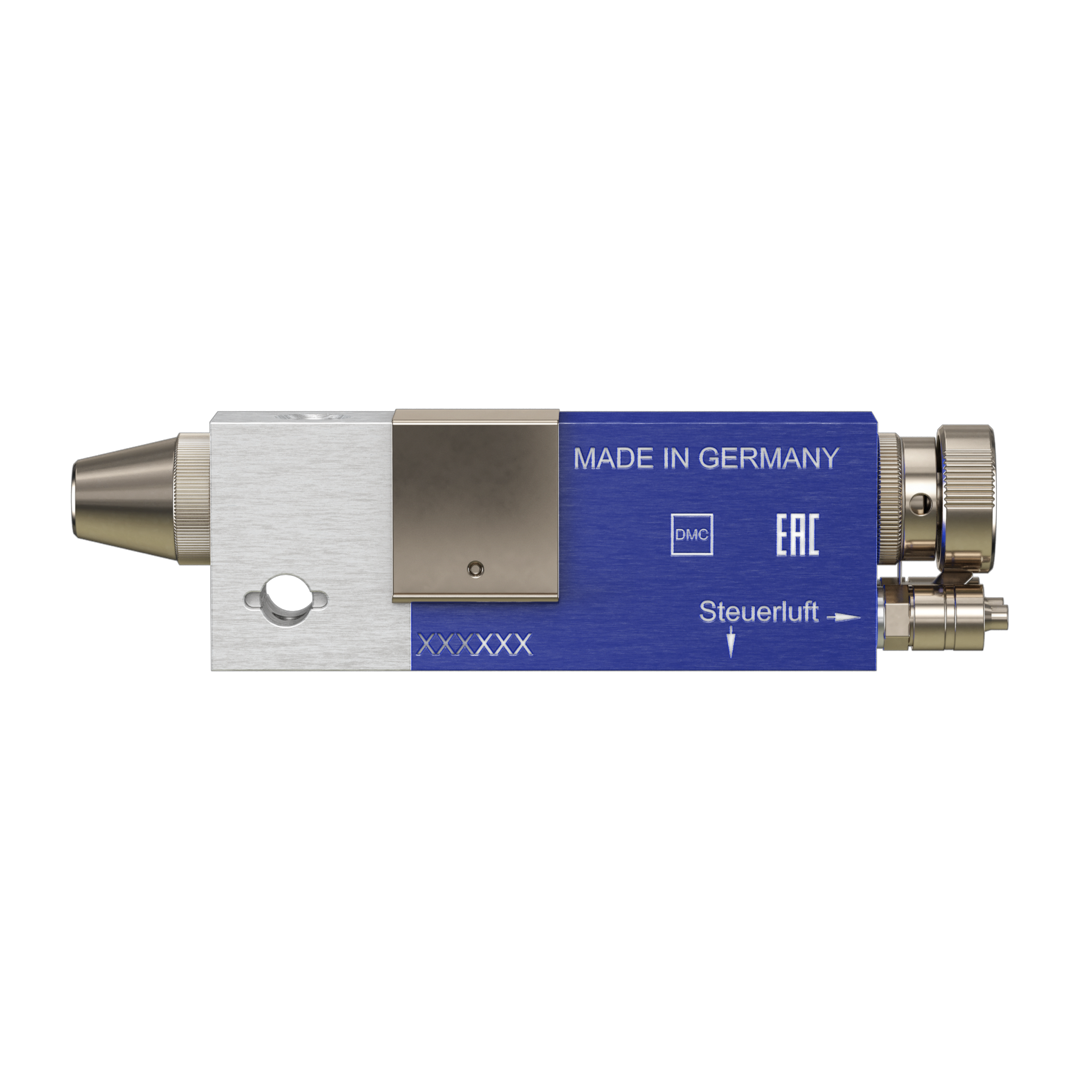

Mikro 3

The automatic spray gun Mikro 3 is extremely small and therefore suitable for use in highly confined spaces such as spraying systems (where Mikro 3 models can even be installed next to one another).

The spray gun Mikro 3 is pneumatically controlled and is fitted with an internal preliminary air control. The control system is activated by a mechanical or electromechanical 3/2-way valve. When switching on, the compressed air-driven control piston first opens the atomising air valve and after that, the material nozzle of the gun. During switch-off, the material nozzle is closed, and then the atomising air valve. This control procedure ensures faster working and prevents material nozzle drip.

The main element, including the fluid head parts, is chemically nickel-plated. The material nozzles and needles are made of stainless steel as standard. Material feed is via gravity cup, delivery pump, gravity pressure container or material pressure feeding container.

  • Mikro 3
  • csm_p_mikro3_large

Spare parts for this product

Here you can find the right spare parts for your Krautzberger product.
