The headboard is made in one piece.

Brief description

• Compact design which still allows for spacious air ducts
• Head section produced in a single piece
• Stainless steel head section
• Also available with Krautzberger HVLP system
• New air distributor ring, for improved spray pattern
• Even easier to maintain thanks to fewer individual parts
• Also for fully automatic use (with separate flat and round jet air)
• Attachment of XLINE extensions possible (M 18v)
• Various jet types (round jet, flat jet, rotary jet, full-cone rotary jet, HVLP)
• Titanium grey, anodised main element, for easier cleaning with XLINE nozzle system
• Air nozzle centring via a calotte
• 100% reproducible spray pattern
• Air nozzle fixation
• Colour-coded marking of the spray procedure
• Improved handling during nozzle alignment thanks to the “click system”
• Trapezoidal thread enables insertion and tightening in one movement

Technical data

• W/H/L: 47/60/119 mm
• Weight: approx. 545 g
• Material connection: G 1/8”
• Control air: 3/5 mm
• Atomiser air: 3/5 mm
Operating pressures
• Air connection: max. 8 bar
• Material connection: max. 12 bar


HVLP System (High Volume Low Pressure) gave a lot of air volume with lower atomization pressure. It is suitable for small and large parts. It is a Low-spray system and also suitable for functional coating. You can reach a lot of material savings with the HVLP system depends on application and material.

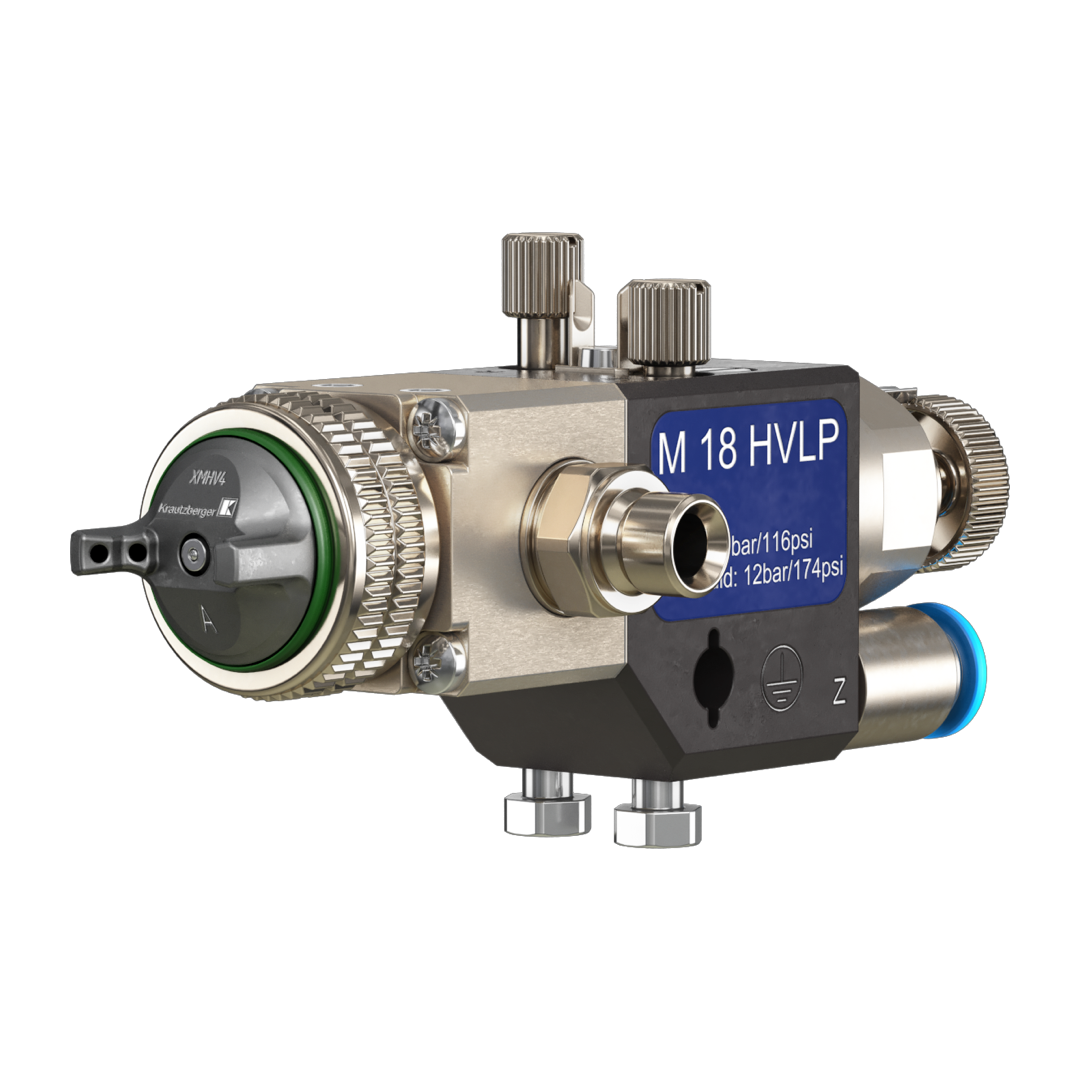

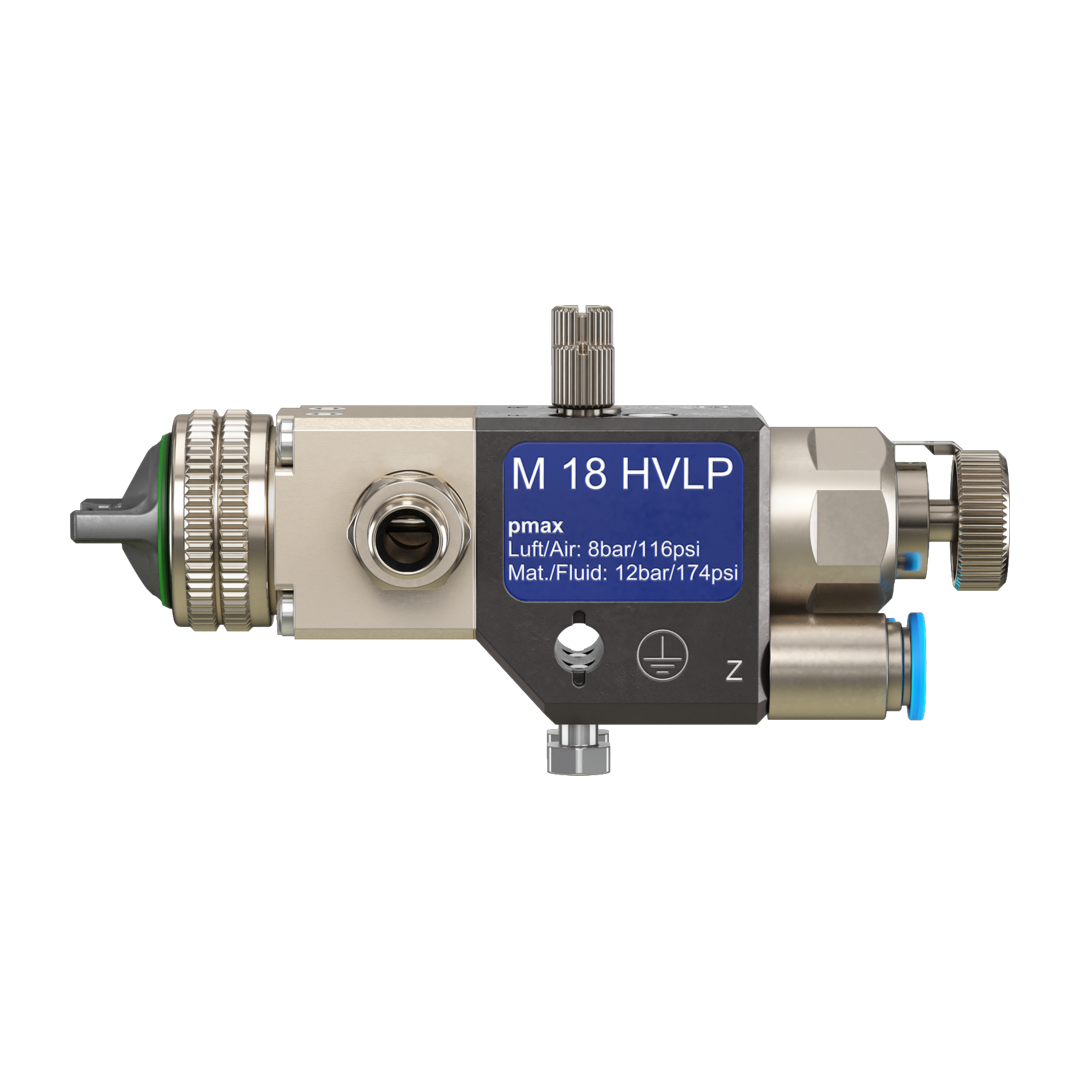

  • krautzberger_m18hvlp
  • krautzberger_m18hvlp

360° product view

Take a closer look at our Krautzberger products. Get an idea of all the functions and discover every little detail. Please feel free to contact us for a live presentation.


Product information, M 18 / M18 HVLP
