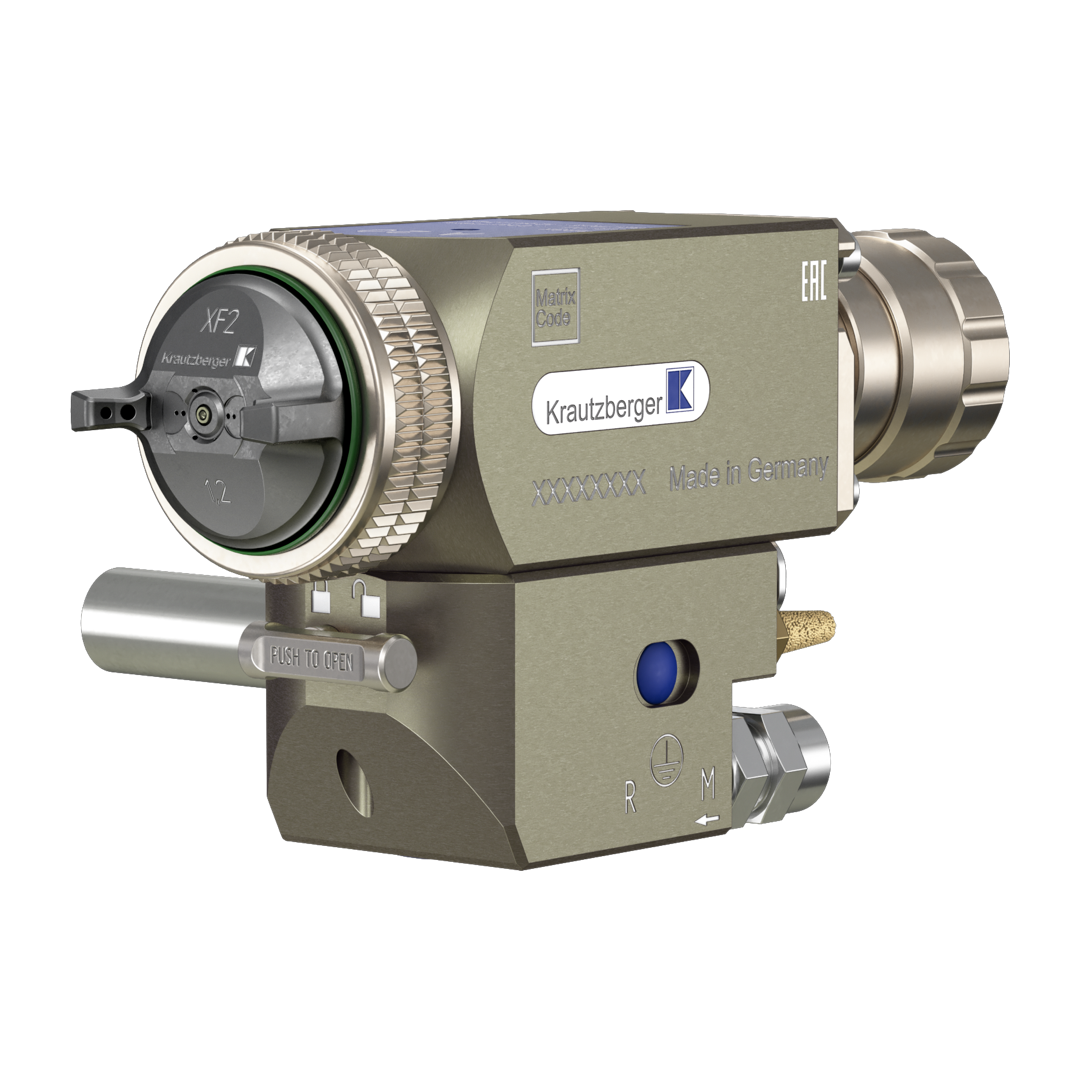

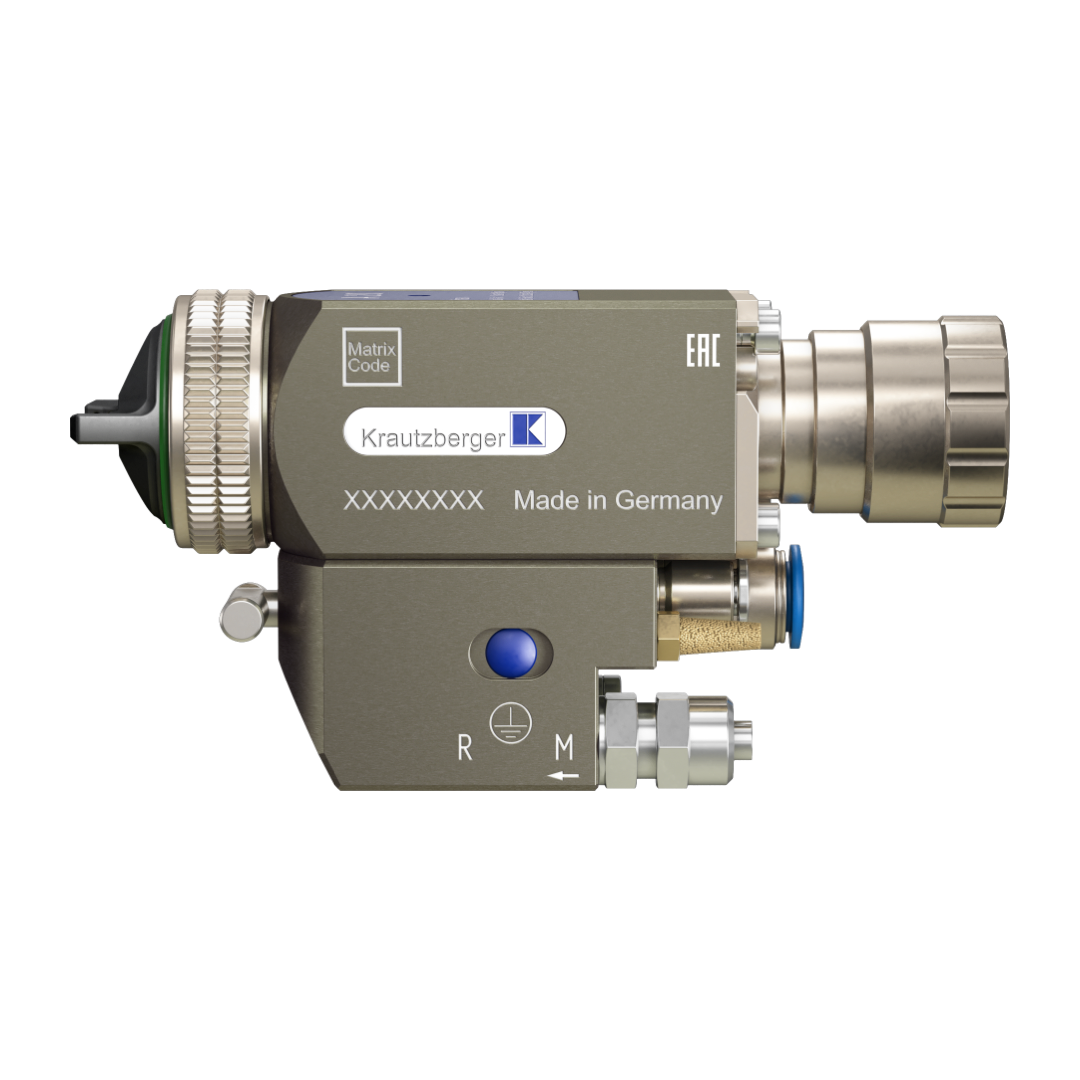

The spray gun A 20 HVLP complements the automatic spray gun product range. Thanks to the quick-change adapter system, the device can be changed within seconds and thanks to the adapter the settings of the spray parameters remain active in the system. The air parameters can only be changed with the tool, an unintended change is therefore not possible.

The innovative aluminium oxide polymer composite coating of the surfaces make the device and the adapter particularly robust and easy to care for, also available in stainless steel.

A new needle connection facilitates the precise and wear-resistant installation of the needle.

The processing of high-quality surfaces made of wood, metal or plastic is a speciality of the A 20. The machine is ideally suited for coating production lines and systems.

Mode of operation

Automatic spray gun is available with the conventional compressed air atomisation as well as with the HVLP option.

Optimised and user-friendly details of the device such as robust, easy to care for surface, air nozzle fixing, which enables the precise setting of the nozzle in 45° intervals, as well as the quick-change adapter make it significantly easier for the user and allow a significant increase of the machine runtime.

A large variety of air caps (nozzles) that are optimally designed for the surface quality of the different coating materials allows for an optimal coordination of the spray pattern to the respective workpiece.

General specifications

  • Working pressure control air max. 4 - 8 bar
  • Working pressure spray medium max. 12 bar
  • Working pressure atomiser air max. 8 bar
  • Noise level depends on the nozzle
  • approx. 73 - 96 dB(A)
  • Spray medium temperature max. 50 °C
  • Control and atomiser temperature max. 50 °C

Special features

  • Spray gun change via quick-change adapter system without tools within seconds
  • The adapter is permanently installed in the system, always ensuring the exact TCP (Tool Centre Point) when the spray gun is changed
  • Resetting of the spray parameter is not necessary after change of spray gun
  • All connections for material and air are integrated with the air control in the adapter
  • Air nozzle positioning, fixed adjustment in 45° intervals, interim positions possible
  • Available with and without needle stroke setting
  • Closing piece quickly detachable
  • Installation of extensions and circulation option possible
  • Aluminium version coated with high-quality aluminium oxide polymer composite layers for easy cleaning and for longerlive times


HVLP System (High Volume Low Pressure) gave a lot of air volume with lower atomization pressure. It is suitable for small and large parts. It is a Low-spray system and also suitable for functional coating. You can reach a lot of material savings with the HVLP system depends on application and material.
